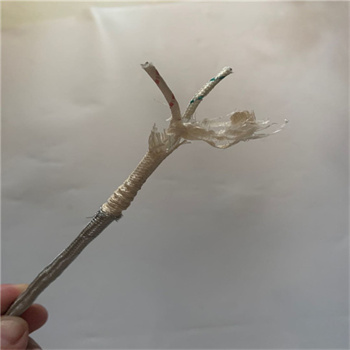

Operate temperature: -60degree to 450degree Cable Structure: nickel plated copper wire + fiberglass braided+ Mica tape wrapping+ fiberglass braided
Conductor Material:Nickel plated copper
Insulation Material:PTFE tape+Fiberglass&coating
Jacket:Stainless Steel Shield
Number of Conductors:3 or 4
Application:Appliance equipment, Electrical wquipment in high temperature condition
cores:2~6 cores
type:MGT -B
temperature range:160deg.C -450deg.C
voltage:300V 600V
color:red balck yellow blue opyional
insulation:fiber mica or other material
shiled:304 316 ss shield
450C special High temperature Shielded Wire or cable | ||||||
Cable type | Conductor construction | Insulation Thickness (mm) | Shielding Density% | OD(mm) | Max DC Resis at 20℃（Ω/km） | Control of hazardous |
3*0.75 | 24/0.20 | 0.6±0.1 | >85 | 6.0±0.3 | 26.7 | Meet ROHS instructions |
3*1.0 | 32/0.20 | 0.6±0.1 | 6.3±0.3 | 20 | ||
3*1.5 | 30/0.25 | 0.65±0.1 | 7.2±0.3 | 13.7 | ||
3*2.5 | 50/0.25 | 0.7±0.1 | 8.4±0.3 | 8.21 | ||
