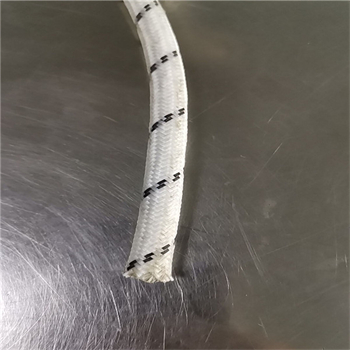

bare copper conductor fiberglass mica high temperature wire --60degree to +350degre GN500-01

bare copper conductor fiberglass mica high temperature wire --60degree to +350degre GN500-01

Operate temperature: -60degree to +350degree
Cable Structure: bare copper copper wire + fiberglass braided+ Mica tape wrapping+ fiberglass braided

Inquiry Now


TECNICAL DATA

Condutor: Bare Copper

Temperature range:-60~+350

Rated Voltage: 500V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green

Used for electric heating,petrochemical,electrical and mechanical equipment,power plant,drying pathdrying room,heating source for lighting,electric appliances and other high temperature areas.





 bare copper conductor fiberglass mica high temperature wire --60degree to +350degre GN500-01

Sectional

Area

(mm²)

Condutor

Construction

(mm)

Insulation

Thickness

(mm)

Outer

Diameter

(mm)

Max.Condutor

Resistance

DC20℃

(Ω/km

Packing

(m)

0.5

7×0.30

0.5

2.6±0.3

39

200

0.75

11×0.30

0.5

2.7±0.3

26

200

1

14×0.30

0.5

2.8±0.3

19.5

200

1.5

21×0.30

0.5

3.0±0.3

13.3

100

2

28×0.30

0.6

3.3±0.5

10.0

100

2.5

35×0.30

0.6

3.6±0.5

7.98

100

4

56×0.30

0.8

4.7±0.5

4.95

100

6

84×0.30

0.8

5.5±0.5

3.30

100

10

84×0.40

0.8

6.6±0.5

1.91

100

16

228×0.30

0.8

7.8±0.5

1.21

100

126×0.40

0.8

7.8±0.5

1.21

100

25

196×0.40

0.8

9.5±0.5

0.78

100

361×0.30

0.8

9.5±0.5

0.78

100

35

494×0.30

0.8

11.2±1.0

0.554

100

50

396×0.40

1.2

13.2±1.0

0.386

100

703×0.30

1.2

13.2±1.0

0.386

100

70

551×0.40

1.2

15.4±1.0

0.272

100

988×0.30

1.2

15.4±1.0

0.272

100

95

760×0.40

1.2

17.4±1.0

0.206

100
