Application
H07RN-F is designed primarily as a trailing cable for use in the supply of energy for portable or mobile equipment.
Heavy duty Harmonized cables are not only robust but also extremely flexible. PCP neoprene is also oil and flame retardant.
Typical applications of the H07RN-F cable include transformers, pumps, welders, grinders, temporary lighting cable and feed cables
to heavy mobile equipment.

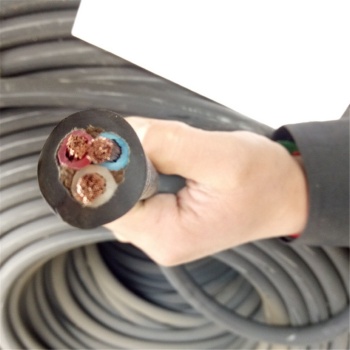

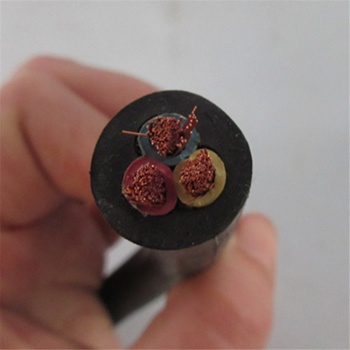

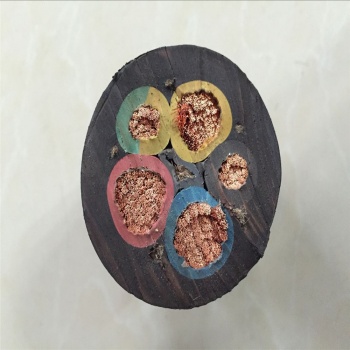

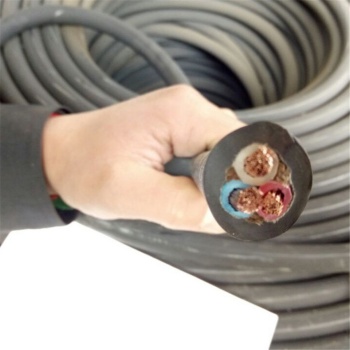

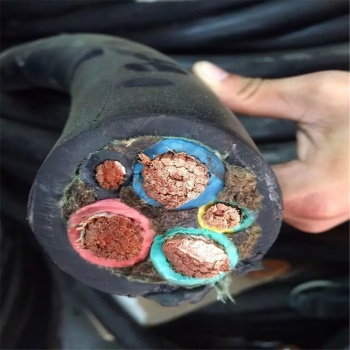

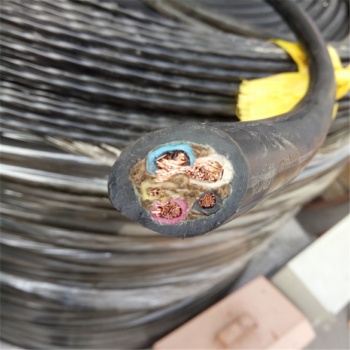

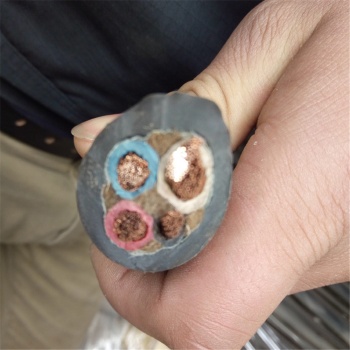

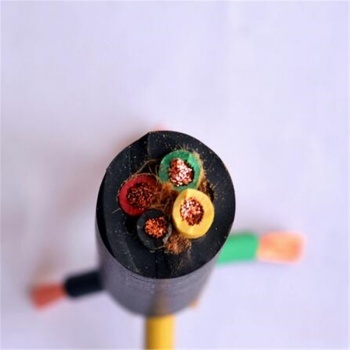

Construction
Conductor:Class 5,fine copper wire strands manufactured to IEC 60228 (previously BS6360)
Insulation:EPR (Ethylene Propylene Rubber)
Sheath:Black neoprene (PCP) outer sheath to BS7919:2001
Conductor Identification
Single Core:Black
Two Core:Brown and blue
Three Core:Brown, blue and green/yellow
Four Core:Brown, black, grey and green/yellow
Five Core:Brown, blue, black, grey and green/yellow
Technical Information
Rated Voltage:450/750V
Test Voltage:3000V
Temperature Range:-25°C to +85°C
Ambient Temperature:30° C
Operating Temperature:60°C
Minimum Bending Radius:6 x Ø for cables not exceeding 25mm
Static:8 x Ø for cables exceeding 25mm
Flexing:15 x Ø
| H07RN-F Single Core Type 450/750V EPR/PCP Trailing Rubber Cable | ||||
| Conductor Section-area (mm2) | Core No. /Dia. (No./mm) | Overall Diameter (mm) | thickness of sheath (mm) | Cable Weight (kg/km) |
| 1x1.5 | 30/0.25 | 0.8 | 6 | 49 |
| 1x 2.5 | 50/0.25 | 0.9 | 6.6 | 63 |
| 1x4 | 56/0.30 | 1 | 7.6 | 92 |
| 1x6 | 84/0.30 | 1 | 8.3 | 115 |
| 1x10 | 80/0.40 | 1.2 | 10.7 | 189 |
| 1x16 | 126/0.40 | 1.2 | 12 | 260 |
| 1x25 | 196/0.40 | 1.4 | 14.1 | 369 |
| 1x35 | 276/0.40 | 1.4 | 15.8 | 500 |
| 1x50 | 396/0.40 | 1.6 | 18.3 | 689 |
| 1x70 | 360/0.50 | 1.6 | 20.7 | 918 |
| 1x95 | 475/0.50 | 1.8 | 23.4 | 1202 |
| 1x120 | 608/0.50 | 1.8 | 25.6 | 1489 |
| 1x150 | 756/0.50 | 2 | 28.3 | 1824 |
| 1x185 | 925/0.50 | 2.2 | 31 | 2202 |
| 1x240 | 1221/0.50 | 2.4 | 34.5 | 2847 |
| 1x300 | 1525/0.50 | 2.6 | 37.7 | 3495 |
| 1x400 | 2013/0.50 | 2.8 | 37.7 | 3495 |
| 1x500 | 1769/0.60 | 3 | 37.7 | 3495 |
| 1x630 | 2257/0.60 | 3 | 37.7 | 3495 |
| H07RN-F 2 Core Type 450/750V EPR/PCP Trailing Rubber Cable | ||||
| Conductor Section-area (mm2) | Core No. /Dia. (No./mm) | Overall Diameter (mm) | thickness of sheath (mm) | Cable Weight (kg/km) |
| 2 X 1.0 | 32/0.20 | 0.8 | 8.4 | 98 |
| 2 X 1.5 | 30/0.50 | 0.8 | 9.4 | 116 |
| 2 X 2.5 | 50/0.25 | 0.9 | 11 | 164 |
| 2 X 4.0 | 56/0.30 | 1 | 12.8 | 232 |
| 2 X 6.0 | 84/0.30 | 1 | 14.2 | 297 |
| 2 X 10.0 | 80/0.40 | 1.2 | 20.4 | 573 |
| 2 X 16.0 | 126/0.40 | 1.2 | 23 | 774 |
| 2 X 25.0 | 196/0.40 | 1.4 | 27.4 | 1110 |
| 2 X 35.0 | 276/0.40 | 1.4 | 30.8 | 1474 |
| H07RN-F 3 Core Type 450/750V EPR/PCP Trailing Rubber Cable | ||||
| Conductor Section-area (mm2) | Core No. /Dia. (No./mm) | Overall Diameter (mm) | thickness of sheath (mm) | Cable Weight (kg/km) |
| 3 X 1.0 | 32/0.20 | 0.8 | 9 | 108 |
| 3 X 1.5 | 30/0.50 | 0.8 | 10.3 | 141 |
| 3 X 2.5 | 50/0.25 | 0.9 | 11.8 | 200 |
| 3 X 4.0 | 56/0.30 | 1 | 13.7 | 285 |
| 3 X 6.0 | 84/0.30 | 1 | 15.2 | 371 |
| 3 X 10.0 | 80/0.40 | 1.2 | 21.9 | 712 |
| 3 X 16.0 | 126/0.40 | 1.2 | 24.7 | 971 |
| 3 X 25.0 | 196/0.40 | 1.4 | 29.4 | 1394 |
| H07RN-F 4 Core Type 450/750V EPR/PCP Trailing Rubber Cable | ||||
| Conductor Section-area (mm2) | Core No. /Dia. (No./mm) | Overall Diameter (mm) | thickness of sheath (mm) | Cable Weight (kg/km) |
| 4 X 1.0 | 32/0.20 | 0.8 | 10 | 134 |
| 4 X 1.5 | 30/0.25 | 0.8 | 11.2 | 174 |
| 4 X 2.5 | 50/0.25 | 0.9 | 12.6 | 249 |
| 4 X 4.0 | 56/0.30 | 1 | 15.1 | 361 |
| 4 X 6.0 | 84/0.30 | 1 | 16.9 | 480 |
| 4 X 10.0 | 80/0.40 | 1.2 | 24 | 890 |
| 4 X 16.0 | 126/0.40 | 1.2 | 27 | 1225 |
| 4 X 25.0 | 196/0.40 | 1.4 | 32.6 | 1792 |
| 4 X 35.0 | 276/0.4 | 1.4 | 36.5 | 2380 |
| 4 X 50.0 | 396/0.4 | 1.6 | 42 | 3635 |
| 4 X 70.0 | 360/0.5 | 1.6 | 49 | 4830 |
| 4 X 95.0 | 475/0.5 | 1.8 | 55 | 6320 |
| H07RN-F 5 Core Type 450/750V EPR/PCP Trailing Rubber Cable | ||||
| Conductor Section-area (mm2) | Core No. /Dia. (No./mm) | Overall Diameter (mm) | thickness of sheath (mm) | Cable Weight (kg/km) |
| 5 X 1.0 | 32/0.20 | 0.8 | 11 | 170 |
| 5 X 1.5 | 30/0.50 | 0.8 | 12.3 | 218 |
| 5 X 2.5 | 50/0.25 | 0.9 | 14.5 | 309 |
| 5 X 4.0 | 56/0.30 | 1 | 16.9 | 450 |
| 5 X 6.0 | 84/0.30 | 1 | 18.8 | 595 |
| 5 X 10.0 | 80/0.40 | 1.2 | 26.5 | 1100 |
| 5 X 16.0 | 126/0.40 | 1.2 | 30 | 1528 |
| 5 X 25.0 | 196/0.40 | 1.4 | 36 | 2200 |
| 5 X 35.0 | 276/0.40 | 1.4 | 40 | 2925 |
