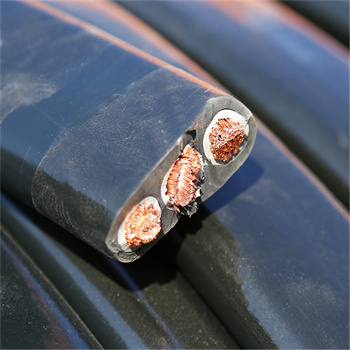

4CORE FLAT CABLES FOR SUBMERSIBLE PUMPS (1100 VOLTS)

Application:

Submersible Pump cables is a specialized product to be used for submersible pumps in a deep well.

The area of installation is physically restrictive, and the environment is very hostile.

For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.

Cable Structure

Copper: flexible copper wire or tinned copper wire

Insulation:PVC

Outer Sheath: Speacial PVC : Black, Blue

Cores colour: Core Identification

3 core:Black, Light Blue and Brown Red, Yellow and Blue

4 core:Black, Light Blue, Brown, Yellow with Green core/ Green with Yellow core

Feature:

Excellent resistant to moisture, abrasion, grace, oil.

Longer Flex Life

Excellent mechanical & electrical propertise.

Standard: IEC 60227, BS 6500, DIN VDE 0281, IS 694

Technical Data

Operating tem.: -20°c to max.+80°C

Nominal voltage: 1100 V

Test voltage: 3000 V

Min. bending radius: 6 x cable diameter

Flame propagation: Flame retardant test as per IEC 60332-1

4CORE FLAT CABLES FOR SUBMERSIBLE PUMPS (1100 VOLTS)
Conductor		Insulation		Sheath			Current Rating at 40℃
Nominal Area	No.&Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx. Overall Dimensions
Nominal Area	No.&Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Thickness	Width
mm2	No./mm	mm	mm	mm	mm	mm	Amps.
1.5	22/0.30	0.8	3.25	1.3	6	15.8	14
2.5	36/0.30	0.9	3.84	1.3	6.5	18	18
4	56/0.30	1	4.5	1.45	7.6	21	26
6	85/0.30	1	5.3	1.5	7.9	24.3	31
10	140/0.30	1	6.5	1.8	9.9	29.7	42
16	226/0.30	1	8	1.95	11.8	36	57
25	354/0.30	1.2	10.1	2	14.7	45.1	72
35	495/0.30	1.2	11.5	2	16.2	50.1	90
50	703/0.30	1.4	13.6	2.2	18.3	58.1	115
70	440/0.45	1.4	15.3	2.2	20	66.5	143
95	475/0.50	1.6	18	2.4	23.5	77.3	165
