H07RN-F For Submersible Pump Cables - 450/750V
CABLE DESIGN :
Submersible Pump cables is a specialized product to be used for submersible pumps in a deep well. The area of installation is physically restrictive, and the environment is very hostile. Jainson is designed and manufactured keeping in mind these factors to achieve the highest possible degree of reliability
Technical Details :
Rubber Sheathed cable CENELEC HD 22.1.S2, DIN VDE 0282 PART 810, IEC 245, CEI 20-19 & BS 6007, BS 6899.
FEATURES & PROPERTIES :
Designed for heavy duty use.
Cur, tear & abrasion resistant.
Exceptional long term performance.
Excellent resistant to oils, chemicals, ozone & solvents.
Excellent Impact Resistant.
Excellent Weather Resistant.
Performs & Looks like Vulcanize Rubber.
Excellent Electrical Properties.
Temperature range -40° to +90°
APPLICATION :
For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.

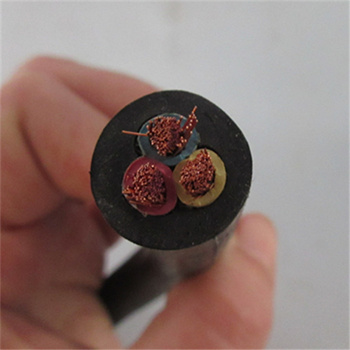

CONSTRUCTION :
Conductor : Plain annealed flexible copper
Insulation : EPR
Sheath/Jacket : PCP Or Synthetic Rubber (Oil resistant & flame retardant)
Core Colours :
3core : Brown, Blue & Green / Yellow
4core : Brown, Blue, Black & Green / Yellow
| RUBBER 3CORE ROUND CABLES FOR SUBMERSIBLE PUMPS (450/750 VOLTS) | ||||
| CONDUCTOR | INSULATION | TOTAL THICKNESS OF DOUBLE SHEATH | ||
| Nominal Area | No.&Dia. of wire | Nominal Thickness | Overall Diameter | |
| Lower Limit | Upper Limit | |||
| mm2 | No./mm | mm | mm | mm |
| 1.5 | 22/0.30 | 0.8 | 9.2 | 11.9 |
| 2.5 | 36/0.30 | 0.9 | 10.9 | 14 |
| 4 | 56/0.30 | 1 | 12.7 | 16.2 |
| 6 | 85/0.30 | 1 | 14.1 | 18 |
| 10 | 140/0.30 | 1.2 | 19.1 | 24.2 |
| 16 | 226/0.30 | 1.2 | 21.8 | 27.6 |
| 25 | 354/0.30 | 1.4 | 26.1 | 33 |
| 35 | 495/0.30 | 1.4 | 29.3 | 37.1 |
| 50 | 703/0.30 | 1.6 | 34.1 | 42.9 |
| 70 | 440/0.45 | 1.6 | 38.4 | 48.3 |
| 95 | 475/0.50 | 1.8 | 43.3 | 54 |
| RUBBER 4CORE ROUND CABLES FOR SUBMERSIBLE PUMPS (450/750 VOLTS) | ||||
| CONDUCTOR | INSULATION | TOTAL THICKNESS OF DOUBLE SHEATH | ||
| Nominal Area | No.&Dia. of wire | Nominal Thickness | Overall Diameter | |
| Lower Limit | Upper Limit | |||
| mm2 | No./mm | mm | mm | mm |
| 1.5 | 22/0.30 | 0.8 | 10.2 | 13.1 |
| 2.5 | 36/0.30 | 0.9 | 12.1 | 15.5 |
| 4 | 56/0.30 | 1 | 14 | 17.9 |
| 6 | 85/0.30 | 1 | 15.7 | 20 |
| 10 | 140/0.30 | 1.2 | 20.9 | 26.5 |
| 16 | 226/0.30 | 1.2 | 23.8 | 30.1 |
| 25 | 354/0.30 | 1.4 | 28.9 | 36.6 |
| 35 | 495/0.30 | 1.4 | 32.5 | 41.1 |
| 50 | 703/0.30 | 1.6 | 37.7 | 47.5 |
| 70 | 440/0.45 | 1.6 | 42.7 | 54 |
| 95 | 475/0.50 | 1.8 | 48.4 | 61 |
