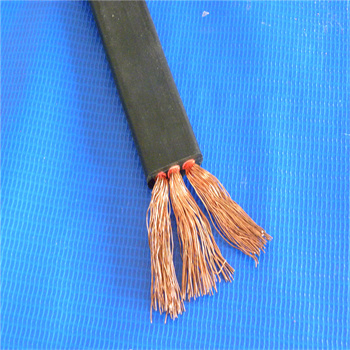

3CORE FLAT Copper CABLES FOR SUBMERSIBLE PUMPS (1100 VOLTS)

FEATURES & PROPERTIES :

Meets the requirement of CENELEC HD 22.1.S2, DIN VDE 0282 PART 810, IEC 245, CEI 20-19 & BS 6007, BS 6899.

Designed for heavy duty use.

Cur, tear & abrasion resistant.

Exceptional long term performance.

Excellent resistant to oils, chemicals,ozone & solvents.

Excellent Impact Resistant.

Excellent Weather Resistant.

Performs & Looks like Vulcanize Rubber.

Excellent Electrical Properties.

APPLICATION :

For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.

CONSTRUCTION :

Conductor : Finely stranded bare copper flexible conductor.

Insulation : Oil & water resistant thermoplastic rubber,

Sheath : Black heavy duty thermoplastic rubber.

Core Colours :

3core: Red ,Yellow and Blue.

3core: Black,Light Blue and Brown

3CORE FLAT CABLES FOR SUBMERSIBLE PUMPS (1100 VOLTS)
Conductor		Insulation		Sheath			Current Rating at 40℃
Nominal Area	No. & Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx. Overall Dimensions
Nominal Area	No. & Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Thickness	Width
mm2	No./mm	mm	mm	mm	mm	mm	Amps.
1.5	22/0.30	0.8	3.25	1.15	6	12.8	14
2.5	36/0.30	0.9	3.84	1.15	6.4	14.6	18
4	56/0.30	1	4.5	1.15	7.4	16.8	26
6	85/0.30	1	5.3	1.15	7.9	18.7	31
10	140/0.30	1	6.5	1.4	9.9	23.7	42
16	226/0.30	1	8	1.4	11.4	28	57
25	354/0.30	1.2	10.1	2	14.7	35.5	72
35	495/0.30	1.2	11.3	2	16.2	39.5	90
50	703/0.30	1.4	13.6	2.2	18.3	45.5	115
70	440/0.45	1.4	15.3	2.2	20	51	143
95	475/0.50	1.6	18	2.4	23.5	60	165
