Round pure copper cable for submersible water pumps 450/750V
Rubber 3 Core Round Cables
FEATURES & PROPERTIES :
Meets the requirement of CENELEC HD 22.1.S2, DIN
VDE 0282 PART 810, IEC 245, CEI 20-19 & BS 6007, BS 6899.
Designed for heavy duty use.
Cur, tear & abrasion resistant.
Exceptional long term performance.
Excellent resistant to oils, chemicals,
ozone & solvents.
Excellent Impact Resistant.
Excellent Weather Resistant.
Performs & Looks like Vulcanize Rubber.
Excellent Electrical Properties.
APPLICATION :
For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.
CONSTRUCTION :
Conductor : Finely stranded bare copper flexible conductor.
Insulation : Oil & water resistant thermoplastic rubber,
Sheath : Black heavy duty thermoplastic rubber.
Core Colours :
3core: Red ,Yellow and Blue.
3core: Black ,Light Blue and Brown.
| 3CORE ROUND CABLES FOR SUBMERSIBLE PUMPS(1100 VOLTS) | ||||||
| Conductor | Insulation | Sheath | Conductor Resistance at 20℃ (max) | |||
| Nominal Area | No.&Dia. of wire | Nominal Thickness | Nominal Core Dia. | Nominal Thickness | Approx. Overall Dia | |
| mm2 | No./mm | mm | mm | mm | mm | Ω/km |
| 1.5 | 22/0.30 | 0.8 | 3.25 | 1.5 | 10 | 12.1 |
| 2.5 | 36/0.30 | 0.9 | 3.84 | 1.5 | 11 | 7.41 |
| 4 | 56/0.30 | 1 | 4.5 | 1.6 | 13 | 4.95 |
| 6 | 85/0.30 | 1 | 5.3 | 1.6 | 14.6 | 3.3 |
| 10 | 140/0.30 | 1 | 6.5 | 2 | 18 | 1.91 |
| 16 | 226/0.30 | 1 | 8 | 2 | 21.2 | 1.21 |
| 25 | 354/0.30 | 1.2 | 10.1 | 2.15 | 26 | 0.78 |
| 35 | 495/0.30 | 1.2 | 11.3 | 2.15 | 28.3 | 0.554 |
| 50 | 703/0.30 | 1.4 | 13.6 | 2.25 | 33.5 | 0.386 |
| 70 | 440/0.45 | 1.4 | 15.3 | 2.45 | 37.8 | 0.272 |
| 95 | 475/0.50 | 1.6 | 18 | 2.4 | 43.5 | 0.206 |

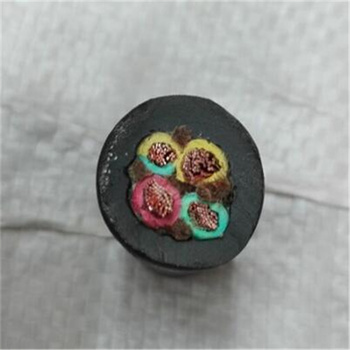

Rubber 4 Core Round Cables
FEATURES & PROPERTIES :
Meets the requirement of CENELEC HD 22.1.S2, DIN
VDE 0282 PART 810, IEC 245, CEI 20-19 & BS 6007, BS 6899.
Designed for heavy duty use.
Cur, tear & abrasion resistant.
Exceptional long term performance.
Excellent resistant to oils, acids, chemicals,
ozone & solvents.
Excellent Impact Resistant.
Excellent Weather Resistant.
Performs & Looks like Vulcanize Rubber.
Excellent Electrical Properties.
APPLICATION :
For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.
CONSTRUCTION :
Conductor : Finely stranded bare copper flexible conductor.
Insulation : Oil & water resistant thermoplastic rubber,
Sheath : Black heavy duty thermoplastic rubber.
Core Colours :
4core: Red, Yellow, Blue, Green Or Black
4core: Black, Light Blue, Brown, Yellow with green line Or Green with yellow line
| 4CORE ROUND CABLES FOR SUBMERSIBLE PUMPS (1100 VOLTS) | ||||||
| Conductor | Insulation | Sheath | Conductor Resistance at 20℃ (max) | |||
| Nominal Area | No. & Dia. of wire | Nominal Thickness | Nominal Core Dia. | Nominal Thickness | Approx. Overall Dia | |
| mm2 | No./mm | mm | mm | mm | mm | Ω/km |
| 1.5 | 22/0.30 | 0.8 | 3.25 | 1.5 | 10.8 | 12.1 |
| 2.5 | 36/0.30 | 0.9 | 3.84 | 1.65 | 12.5 | 7.41 |
| 4 | 56/0.30 | 1 | 4.5 | 1.65 | 14.1 | 4.95 |
| 6 | 85/0.30 | 1 | 5.3 | 1.65 | 16 | 3.3 |
| 10 | 140/0.30 | 1 | 6.5 | 2 | 20.35 | 1.91 |
| 16 | 226/0.30 | 1 | 8 | 2 | 23.4 | 1.21 |
| 25 | 354/0.30 | 1.2 | 10.1 | 2.2 | 28.8 | 0.78 |
| 35 | 495/0.30 | 1.2 | 11.5 | 2.2 | 31.5 | 0.554 |
| 50 | 703/0.30 | 1.4 | 13.6 | 2.3 | 37.3 | 0.386 |
| 70 | 440/0.30 | 1.4 | 15.3 | 2.6 | 42.2 | 0.272 |
| 95 | 475/0.50 | 1.6 | 18 | 2.65 | 48.8 | 0.206 |
