Features - PVC AWG Pump Cables

Cable is in accordance with UL specification for 75 degree C type TW cable

Generally conforming to : UL 83 IEC 60227, BS 6500, ISI 694

Excellent electrical properties

Excellent resistant to moisture, abrasion, grease and oil

Longer flex life

Excellent resistance to oils, acids, chemicals and ozone

Excellent impact a 600V pump cable suitable for use within deep well pumps.

Application - PVC AWG Pump Cables

For continuous use in deep well to supply power to submersible pumps down to depths.

Contraction - PVC AWG Pump Cables

Class C Flexible, bare copper

Insulation : PVC (Polyvinyl Chloride)

Sheath : PVC (Polyvinyl Chloride)

Colour Code :

Black - Yellow - Red (Without Ground)

 Black - Yellow - Red - Green (With Ground)

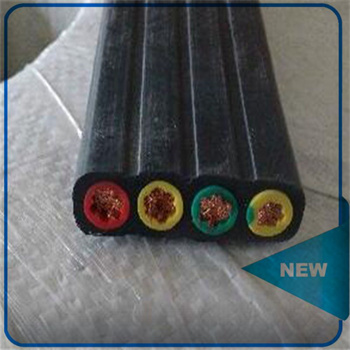

Features - Rubber AWG Pump Cables

Meets the requirement

UL - 83 IEC 60245, DIN VDE 0282 PART 810, BS 6007 & BS 6899

600 volts, 90° C Dry & Wet

Designed for heavy duty use

Cut, tear and abrasion resistant

Exceptional long term performance

Excellent resistance to oils, acids, chemicals and ozone

Excellent impact and weather resistance

Excellent electrical properities

Temperature range -40° to 90°

ROHS compliance (lead free)

Flat submersible 600 V pump cable suitable for use within deep well fresh or salt water submersible pumps.
