Features - Rubber AWG Pump Cables
Meets the requirement
UL - 83 IEC 60245, DIN VDE 0282 PART 810, BS 6007 & BS 6899
600 volts, 90° C Dry & Wet
Designed for heavy duty use
Cut, tear and abrasion resistant
Exceptional long term performance
Excellent resistance to oils, acids, chemicals and ozone
Excellent impact and weather resistance
Excellent electrical properities
Temperature range -40° to 90°
ROHS compliance (lead free)

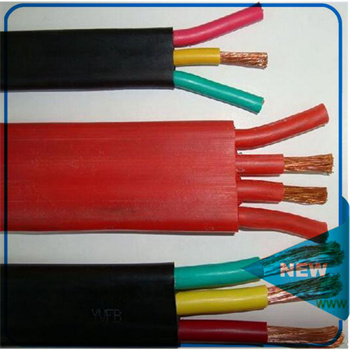

Flat submersible 600 V pump cable suitable for use within deep well fresh or salt water submersible pumps.
Contraction - Rubber AWG Pump Cables
Class C Flexible, bare copper
Insulation : Thermo plastic rubber (TPR)
Sheath : Thermo plastic rubber (TPR)
Colour Code : Black - Yellow - Red (Without Ground)
Black - Yellow - Red - Green (With Ground)
Flat Jacketed Submersible Pump Cables Without Ground | ||||||
CONDUCTOR SIZE (AWG) | NO OF CONDUCTOR | Nos & Dia. of Wire | Ground Conductor Size (AWG) | CORE DIA. (MM) | NOMINAL SHETH THICKNESS (MM) | CABLE DIA. (MM) |
14 | 3 | 41 X 0.254 | 14 | 3.85 | 1.15 | 18.00 x6.50 |
12 | 3 | 65 X 0.254 | 12 | 4.5 | 1.15 | 21.00 x7.60 |
10 | 3 | 105 X 0.254 | 10 | 5.3 | 1.15 | 24.30 x7.90 |
8 | 3 | 168 X 0.254 | 10 | 6.5 | 1.4 | 29.70 x9.90 |
6 | 3 | 266 X 0.254 | 8 | 8 | 2 | 36.00 x11.80 |
4 | 3 | 420 X 0.254 | 8 | 10.1 | 2 | 45.10 x14.70 |
2 | 3 | 665 X 0.254 | 6 | 11.3 | 2.2 | 50.10 x16.20 |
1 | 3 | 817 X 0.254 | 6 | 13.6 | 2.2 | 58.10 x19.00 |
1/0 | 3 | 1045 X 0.254 | 6 | 15.6 | 2.2 | 58.10 x19.00 |
2/0 | 3 | 1330 X 0.254 | 6 | 18 | 2.2 | 66.50 x21.50 |
