Cable Structure

Copper: flexible copper wire or tinned copper wire

Insulation:PVC

Outer Sheath: Speacial PVC : Black, Blue

Cores colour: Core Identification

3 core:Black, Light Blue and Brown Red, Yellow and Blue

4 core:Black, Light Blue, Brown, Yellow with Green Line/ Green with Yellow Line

  Cable Features

 Good insulation properties when submerged in winter

   Quality backed by 40 years experience in cable industry

   Excellent resistant to moisture, abrasion, grace, oil

   Longer Flex Life

   Excellent mechanical & electrical properties

 Standard: IEC 60227,  BS 6500, DIN VDE 0281, IS 694

Application

submersible Pump cable is a specialized product to be used for submersible pumps in a deep well. The area of installation is  physically  restrictive, and the environment is very hostile.

Technical Data

Operating tem.: -20°c to max.+80°C

Nominal voltage: 1100 V

Test voltage: 3000 V

Min. bending radius: 6 x cable diameter

Flame propagation: Flame retardant test as per IEC 60332-1

 Application

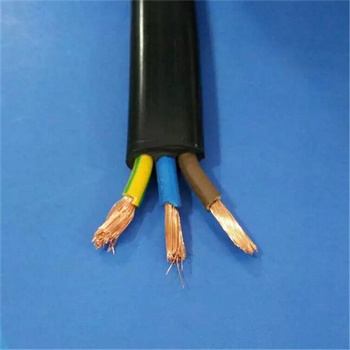

PVC Flat - 3 & 4 Core

submersible pump cables are used as supply and control cables for engines for submersible pumps, underwater lighting, and floating switches etc. up to the depth of 500 m and water temperature up to +75°C. These cables are ideal for outer installations in dry, moist and wet environments but however not suitable for explosive areas.

Standard length cable packing:

Coils 100, 200,300 and 500, 1000m. in wooden reels

PVC Flat - 3 core
Conductor		Insulation		Sheath			Current Rating at 40℃
Nominal Area	No. & Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx. Overall Dimensions
					Thickness	Width
mm2	No./mm	mm	mm	mm	mm	mm	Amps.
1.5	22/0.30	0.8	3.25	1.15	6	12.8	14
2.5	36/0.30	0.9	3.84	1.15	6.4	14.6	18
4	56/0.30	1	4.5	1.15	7.4	16.8	26
6	84/0.30	1	5.3	1.15	7.9	18.7	31
10	140/0.30	1	6.5	1.4	9.9	23.7	42
16	224/0.30	1	8	1.4	11.4	28	57
25	350/0.30	1.2	10.1	2	14.7	35.5	72
35	490/0.30	1.2	11.3	2	16.2	39.5	90
50	703/0.30	1.4	13.6	2.2	18.3	45.5	115
70	988/0.30	1.4	15.3	2.2	20	51	143
95	1349/0.30	1.6	18	2.4	23.5	60	165
