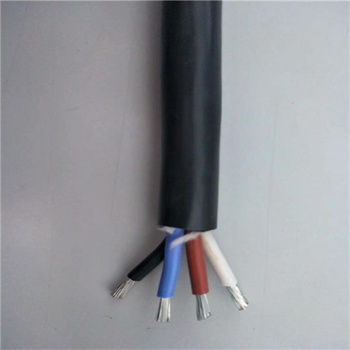

Telfon insulation high temperature cable AFBF (200 degree)
Product Features:
1, rated voltage: 300 / 500V
2, the working temperature: -60 ~ +200 ℃
3, conductor: stranded tinned or silver plated copper wire
4, insulation: FEP Telfon
5, sheath: FEP Telfon
6, color: red / yellow / blue / white / black / yellow green / brown / green and so on
Features / Uses:
High resistance to high voltage, high-frequency loss, non-hygroscopic, large insulation resistance; with excellent resistance to
combustion, resistance to corrosion, anti-acid, anti-alkali, strong oxidizing agent with excellent electrical insulation properties;
Aging performance, long service life.
Electronic industry, can be used for temperature compensation wire, low temperature wire, high temperature heating wire,
anti-aging wire and flame retardant wire; household appliances industry, can be used in air conditioners, microwave ovens,
electronic disinfection cabinet, rice cookers, electronic thermos, Heaters, electric ovens, electric frying pan, lighting, lighting
and other internal wiring.
Telfon insulation high temperature cable AFBF (200 degree)
Core number Section (mm2) | Conductor Construction | Insulation (mm) | Jacket (mm） | Max. Conductor Resistance DC20℃ (Ω/㎞) | ||
Thickness | Outer Diameter | Thickness | Outer Diameter
| |||
2×0.03 | 1/0.20 | 0.10 | 0.40 | 0.15 | 0.7*1.1 | 560 |
2×0.05 | 1/0.25 | 0.10 | 0.45 | 0.15 | 0.75*1.20 | 386.9 |
2×0.07 | 1/0.30 | 0.15 | 0.60 | 0.25 | 1.10*1.70 | 245 |
2×0.12 | 1/0.40 | 0.20 | 0.80 | 0.20 | 1.20*2.0 | 146.9 |
2×0.2 | 1/0.50 | 0.25 | 1.0 | 0.25 | 1.50*2.50 | 94 |
2×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 1.40*2.20 | 150 |
3×0.12 | 7/0.15 | 0.20 | 0.85 | 0.30 | 1.45*3.20 | 150 |
4×0.12 | 7/0.15 | 0.20 | 0.85 | 0.30 | 1.45*4.0 | 150 |
2×0.2 | 7/0.20 | 0.15 | 0.90 | 0.25 | 1.40*2.30 | 83.5 |
3×0.2 | 7/0.20 | 0.15 | 0.90 | 0.30 | 1.40*3.30 | 83.5 |
4×0.2 | 7/0.20 | 0.15 | 0.90 | 0.30 | 1.40*4.20 | 83.5 |
2×0.35 | 19/0.16 | 0.25 | 1.30 | 0.30 | 1.90*3.20 | 49.5 |
3×0.35 | 19/0.16 | 0.25 | 1.30 | 0.30 | 1.90*4.50 | 49.5 |
2×0.5 | 19/0.18 | 0.25 | 1.40 | 0.25 | 1.90*3.30 | 36.0 |
3×0.5 | 19/0.18 | 0.25 | 1.40 | 0.30 | 2.0*4.80 | 36.0 |
2×0.75 | 19/0.23 | 0.25 | 1.70 | 0.30 | 2.30*4.0 | 22.7 |
2×1 | 19/0.26 | 0.25 | 1.80 | 0.30 | 2.40*4.20 | 19 |
2×1.5 | 19/0.32 | 0.30 | 2.25 | 0.30 | 2.85*5.10 | 11.7 |
2×2.5 | 19/0.41 | 0.40 | 2.80 | 0.40 | 3.60*6.40 | 6.86 |
