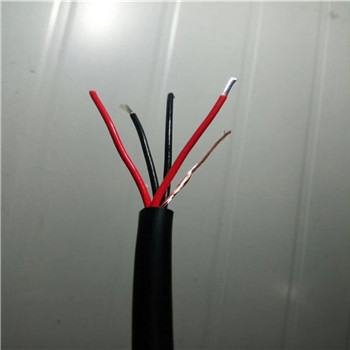

Tinned or Silver Copper conductor FEP/PFA Teflon insulation cable 200degree 250degree

Description

TECHNICAL DATA
Jacket:FEP/PFA Teflon
Insulator:FEP/PFA Teflon
Conductor:Tinned or Silver Copper
Temperature Range:-60℃~+200℃/250℃
Rated Voltage:300V/500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green

Used at AC rated voltage 300V/500V or below with various movable electric
machines,steel plant,aviation,power plant pertrochemical industry and outdoor lighting of high temperature area.

Core number Section (㎜²)	Conductor Construction	Insulation (mm)		Jacket (mm）		Max. Conductor Resistance DC20℃ (Ω/㎞)
		Thickness	Outer Diameter	Thickness	Outer Diameter
2×0.35	19/0.16	0.25	1.30	0.25	3.10	49.5
3×0.35	19/0.16	0.25	1.30	0.25	3.20	49.5
4×0.35	19/0.16	0.25	1.30	0.25	3.65	49.5
5×0.35	19/0.16	0.25	1.30	0.30	4.10	49.5
6×0.35	19/0.16	0.25	1.30	0.30	4.50	49.5
7×0.35	19/0.16	0.25	1.30	0.30	4.50	49.5
2×0.5	19/0.18	0.25	1.40	0.25	3.30	36.0
3×0.5	19/0.18	0.25	1.40	0.25	3.40	36.0
4×0.5	19/0.18	0.25	1.40	0.30	4.0	36.0
5×0.5	19/0.18	0.25	1.40	0.30	4.40	36.0
6×0.5	19/0.18	0.25	1.40	0.30	4.80	36.0
7×0.5	19/0.18	0.25	1.40	0.30	4.80	36.0
2×0.75	19/0.23	0.25	1.70	0.30	4.0	22.7
3×0.75	19/0.23	0.25	1.70	0.30	4.0	22.7
4×0.75	19/0.23	0.25	1.70	0.30	4.70	22.7
5×0.75	19/0.23	0.25	1.70	0.35	5.30	22.7
6×0.75	19/0.23	0.25	1.70	0.35	5.80	22.7
7×0.75	19/0.23	0.25	1.70	0.35	5.80	22.7
2×1	19/0.26	0.25	1.80	0.30	4.20	19.0
3×1	19/0.26	0.25	1.80	0.35	4.30	19.0
4×1	19/0.26	0.25	1.80	0.35	5.10	19.0
5×1	19/0.26	0.25	1.80	0.35	5.60	19.0
6×1	19/0.26	0.25	1.80	0.40	6.20	19.0
7×1	19/0.26	0.25	1.80	0.40	6.20	19.0
2×1.5	19/0.32	0.30	2.25	0.35	5.20	11.7
3×1.5	19/0.32	0.30	2.25	0.35	5.30	11.7
4×1.5	19/0.32	0.30	2.25	0.40	6.20	11.7
5×1.5	19/0.32	0.30	2.25	0.40	6.80	11.7
6×1.5	19/0.32	0.30	2.25	0.40	7.50	11.7
