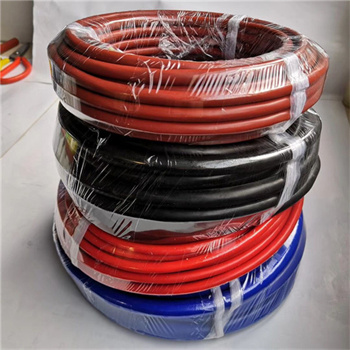

Military Standard PTFE Insulator multi-strand nickel plated copper Cable
Application:
PTFE,ETFE and FEP Cable for gearbox, Oil-box, Sensor interconnect 0.35mm2----10.00mm2 32AWG ----10 AWG
1,Excellent mechanical properties and chemical resistance.
2,Outstanding Oil resistance, etching.
3,High tear and tensile strength damping characteristic.
Operating temperature range
-100 °C to +260°C for PTFE
-100 °C to +250°C for PFA
-60 °C to +200°C for FEP
-60 °C to +175°C for ETFE
APLLICATION
For internal wiring or external wiring
of electronic equipment
Rated temperature:200℃
Rated voltage:30V
Military Standard PTFE Insulator multi-strand nickel plated copper Cable
Conductor | Insulation | Over Diameter | Packing | ||||
AWG | No./mm | Out.Dia. | Avr.Thick. | Min.Thick. | average | tolerance | |
20 | 19/0.19 | 0.95 | 0.15 | 0.10 | 1.25 | ±0.10 | 2000 |
22 | 19/0.15 | 0.75 | 0.15 | 0.10 | 1.05 | ±0.10 | 2000 |
24 | 7/0.20 | 0.61 | 0.15 | 0.10 | 0.91 | ±0.10 | 2000 |
26 | 7/0.16 | 0.48 | 0.15 | 0.10 | 0.78 | ±0.10 | 2000 |
28 | 7/0.127 | 0.38 | 0.15 | 0.10 | 0.68 | ±0.10 | 2000 |
30 | 7/0.10 | 0.30 | 0.15 | 0.10 | 0.60 | ±0.10 | 2000 |
32 | 7/0.08 | 0.24 | 0.15 | 0.10 | 0.54 | ±0.10 | 2000 |
